- Ultra-compact design - Global free frequency 2.4GHz ISM wireless technology - Broadcast-quality sound - Optional stereo and mono modes - Wide compatibility - OLED screen on receiver - Real time monitoring available - Flexible gain setting

Product Introduction

BY-XM6 Mini is an advanced and versatile 2.4GHz wireless microphone system that expands on the success of the classic BY-XM6 microphone series with a further improvement in portability. With the features of ultra-compact, stable signal transmission, and two-person shoots, it ensures that the crystal-clear sound can be captured and enables the audio to be collected and mixed together or into a separate channel. Furthermore, the transmitters can automatically pair with the receiver when turned on, and thanks to the ultra-compact design, they can be easily clipped to clothing without creating any sensation, providing users with a high-quality recording experience, especially during outdoor activities.

See more Pack up

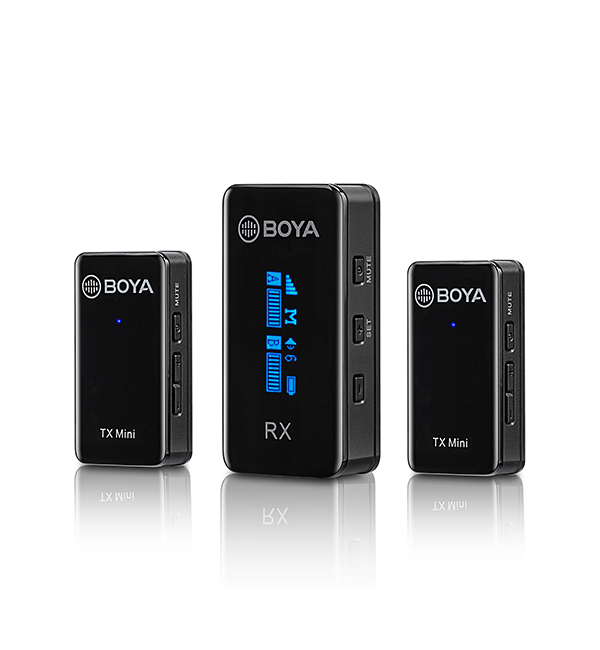

BY-XM6-S2 Mini
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone

Product Parameters

Transmitter
Transmission Type
2.4GHz lSM Frequency
Modulation
GFSK
Operating Range
Up to 328ft (100m) (without obstacle)
RF Output Power
<10mw
Polar Pattern
Omnidirectional
Frequency Response
35Hz-18KHz
Maximum SPL
120dB SPL
Sensitivity
-39dB
SNR
>77 dB
Power Requirements
Built-in Li-ion Battery or USB-C DC 5v or Charging Contact
Built-in Battery Life
Approx.4.5 hours
Antenna
PIFA Antenna
Audio lnputs
Built-in Microphone
Weight
Approx.14.5g(0.5oz)
Dimensions
46x23.92x15mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +55℃
Receiver
Transmission Type
2.4GHz Digital Frequency
Modulation
GFSK
Operating Range
Up to 328ft (100m)(without obstacle)
Audio Output Connector
3.5mm Headphone Jack / 3.5mm TRS Output Jack
Audio Output Level
-60 dBV to -20dBV
Power Requirements
Built-in Li-ion Battery or USB-C DC 5v or Charging Contact
Built-in Battery Life
Approx.7 hours
Antenna
PIFA Antenna
Weight
Approx.32g(1.13oz)
Dimensions
62.1×31.6×16.5mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +55℃
Packing List
BY-XM6 TX Mini Transmitter×2
BY-XM6 RX Receiver×1
USB-C Charging Cable×3
Fur Windshield for Built-in Microphone×2
3.5mm TRS to TRS Output Cable for Camera×1
3.5mm TRS to TRRS Output Cable for Smartphones×1
Transmitter
Transmission Type
2.4GHz lSM Frequency
Modulation
GFSK
Operating Range
Up to 328ft (100m) (without obstacle)
RF Output Power
<10mw
Polar Pattern
Omnidirectional
Frequency Response
35Hz-18KHz
Maximum SPL
120dB SPL
Sensitivity
-39dB
SNR
>77 dB
Power Requirements
Built-in Li-ion Battery or USB-C DC 5v or Charging Contact
Built-in Battery Life
Approx.4.5 hours
Antenna
PIFA Antenna
Audio lnputs
Built-in Microphone
Weight
Approx.14.5g(0.5oz)
Dimensions
46x23.92x15mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +55℃
Receiver
Transmission Type
2.4GHz Digital Frequency
Modulation
GFSK
Operating Range
Up to 328ft (100m)(without obstacle)
Audio Output Connector
3.5mm Headphone Jack / 3.5mm TRS Output Jack
Audio Output Level
-60 dBV to -20dBV
Power Requirements
Built-in Li-ion Battery or USB-C DC 5v or Charging Contact
Built-in Battery Life
Approx.7 hours
Antenna
PIFA Antenna
Weight
Approx.32g(1.13oz)
Dimensions
62.1×31.6×16.5mm
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to +55℃
Packing List
BY-XM6 TX Mini Transmitter×2
BY-XM6 RX Receiver×1
USB-C Charging Cable×3
Fur Windshield for Built-in Microphone×2
3.5mm TRS to TRS Output Cable for Camera×1
3.5mm TRS to TRRS Output Cable for Smartphones×1
Put it all away
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
boya xm6 mini wireless microphone
Put it all away

User Manual - BY-XM6-S1 Mini/S2 Mini

Download
